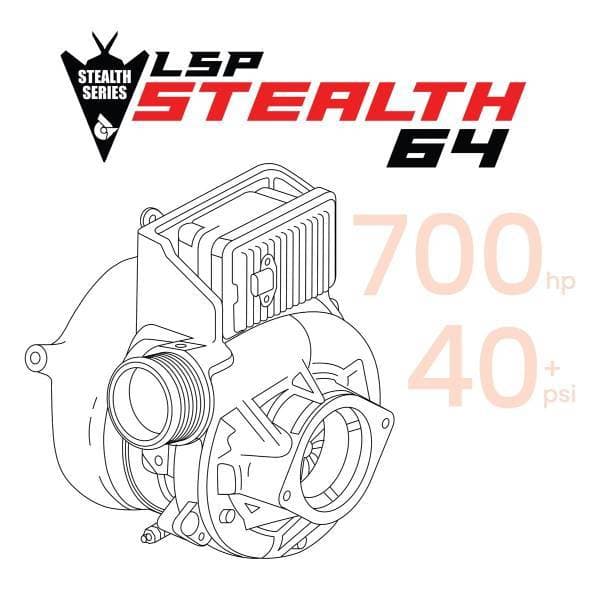

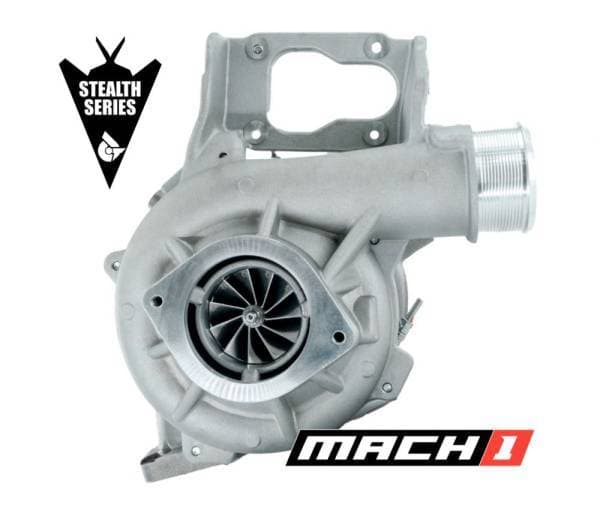

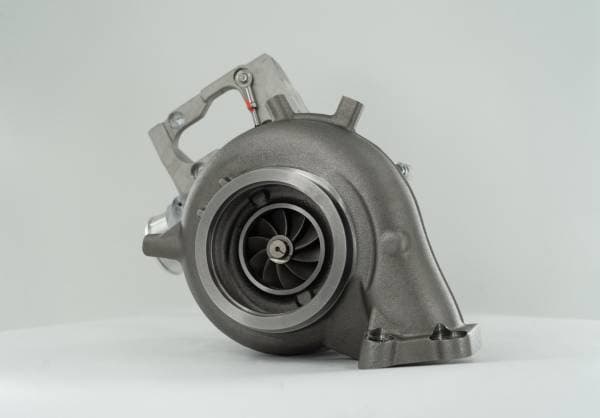

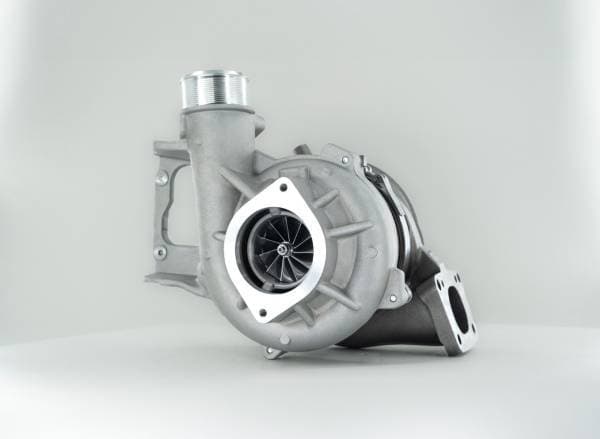

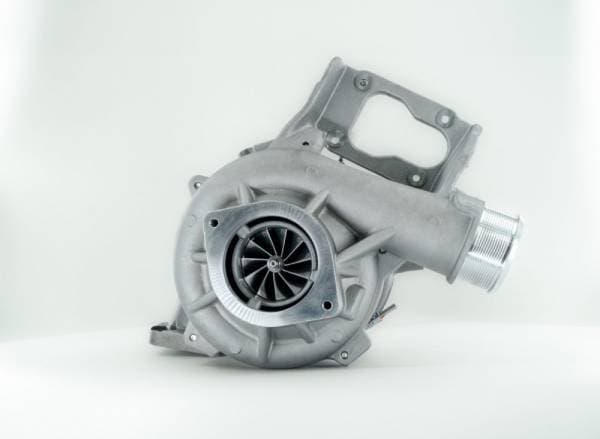

L5P/L5D Stealth Mach 1 64 Turbo w/o Actuator (2020-2023)

Actuator Not Included
Airflow to support 700HP
Up to 650 RWHP with stock emissions equipment and basic supporting mods
Tested in competition setups with extensive supporting mods to make 700+ RWHP
41 psi boost @ Sea Level

L5P / L5D Stealth 64: Boost Starts HERE!

• Airflow to support 700HP



  • Up to 650 RWHP with stock emissions equipment and basic supporting mods


  • Tested in competition setups with extensive supporting mods to make 700+ RWHP


  • 41 psi boost @ Sea Level





• Custom Billet Compressor Wheel



  • 64mm 11-Blade wheel



    • Provides a wide efficiency range


    • Allows you to tow without the risk of surge






  • Lightweight and high strength






  • Provides 74 lbs/min mass airflow compared to 60lbs/min stock


  • No Surge (Even when lugging)





• Oversized Custom Turbine Wheel



  • Custom high flow 9-blade design


  • Lowers drive pressures under high loads


  • Boosts the effectiveness of exhaust energy capture


  • Produces a distinctive Stealth turbo whistle

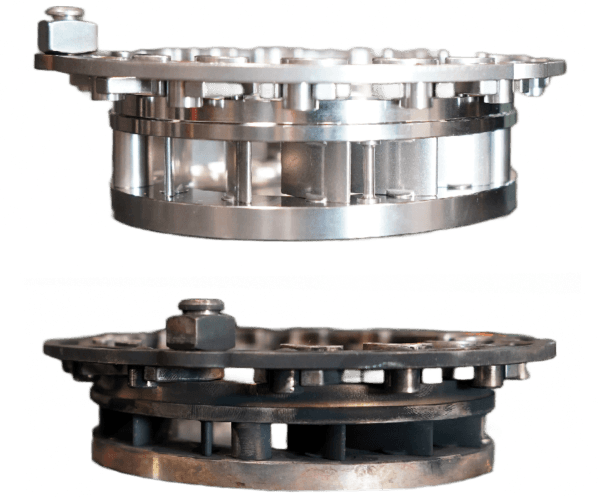

• HFV (High Flow Vane) Technology



  • Custom Vane/Nozzle Ring Assembly


  • Exclusive design produced in-house specific to this application


  • Taller and wider vanes match larger turbine to provide superior high-load efficiency


  • Retain factory exhaust brake and quicker throttle response





• Brand New parts and electronics



  • No Core Charges





• Designed and spec'd by Tuners



  • Easy for any custom tuner to work with


  • DuramaxTuner will help your custom tuner with required settings if need be





This turbo is designed for you if...

• You already have, or plan on installing custom tuning


• Daily drive your truck


• Have Reliability and Performance as top priorities


• Tow with your truck


• Want More Power and excellent street manners!

Do you need an Actuator?

 If you're wondering whether or not you should buy an actuator to compliment your Stealth turbo, allow us to share our thoughts. The 2017-2023 Duramax actuator has a very low failure rate in the field.  The fact that it's well cooled and not in close proximity to the hot parts of the turbo means that it's out of harm's way.  Unless you're experiencing codes that indicate actuator issues or know for a fact that your actuator is somehow damaged, we would suggest saving your money and retaining your factory actuator.

Add on a Stealth Boost Tester.

Boost leaks can kill diesel engines. They cause higher EGTs, decrease your power, and lower fuel economy. Properly being able to test your entire charged air system is essential to getting peak performance and longevity out of your diesel engine. Charged air systems include everywhere from the turbocharger to the intake manifold. Your intercooler system, Exhaust Gas Recirculation components, and even the Turbocharger compressor cover can all develop boost leaks. This boost tester is exactly what you need if you work on diesel trucks regularly or just want to check the condition of your engine's charge system. Here's what you can get:

• Heavy Duty Regulator



  • Extremely Accurate


  • Testes Entire Charge system


  • Precise control over test conditions


  • Easy to use and read


  • Premium parts built to last for a lifetime


  • High-quality seals


  • Liquid gauge prevents erratic readings


  • Metal construction





• CNC Precision-Cut Adapter



  • Perfect Fitment


  • Clean look


  • Intelligent design


  • Made from high-quality materials


  • Made and assembled in the USA





Important Notice:

This turbo uses a customized nozzle ring and/or shroud plate.  It’s been engineered to provide amazing response and performance.

This turbo must only be operated with tuning that uses stock Minimum and Maximum Vane Position tables. Failure to do so can lead to excessive exhaust pressure and boost which may shorten the life of the turbo or engine and may void the turbo warranty.

Damage caused as a result of non-stock vane position tuning modifications will be the responsibility of the owner, not Calibrated Power Solutions Inc. If you have any questions or concerns please contact CPS at 815-568-7920.



Warranty: All Stealth Series turbos offer our Unlimited Mile, 1-year manufacturer warranty for quality and craftsmanship. For warranty inquiries please contact sales@duramaxtuner.com

View The Vehicle Emissions Testing Data: Click Here
